2126

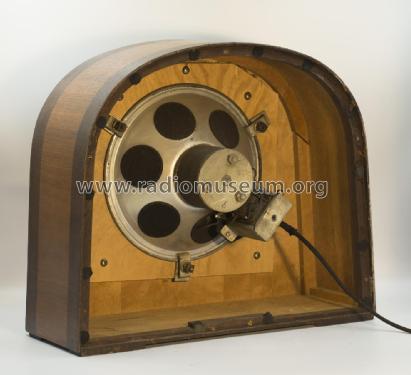

2126; Philips; Eindhoven (ID = 2448552) Speaker-P 2126; Philips; Eindhoven (ID = 2448557) Speaker-P

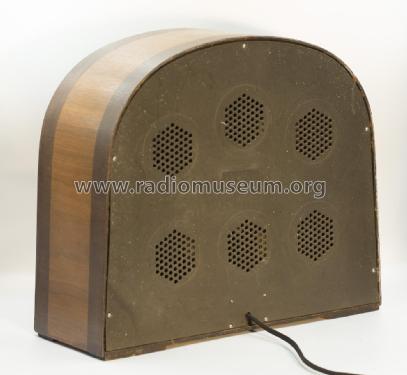

2126; Philips; Eindhoven (ID = 2448555) Speaker-P 2126; Philips; Eindhoven (ID = 2448551) Speaker-P
2126; Philips; Eindhoven (ID = 2448553) Speaker-P 2126; Philips; Eindhoven (ID = 2448556) Speaker-P
2126; Philips; Eindhoven (ID = 367122) Speaker-P 2126; Philips; Eindhoven (ID = 367126) Speaker-P
2126; Philips; Eindhoven (ID = 367128) Speaker-P 2126; Philips; Eindhoven (ID = 367125) Speaker-P
Use red slider bar for more.

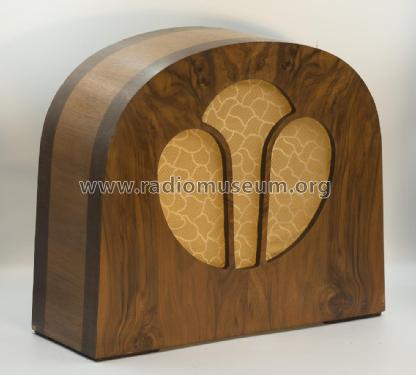

2126; Philips; Eindhoven (ID = 2448552) Speaker-P
Philips; Eindhoven: 2126 [Speaker-P] ID = 2448552 1400x1262
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2126, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1932 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 2126 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 400 x 340 x 145 mm / 15.7 x 13.4 x 5.7 inch
Notes AF transformer built-in, impedance 13.000 ohm. Driver Philips 2158.
Net weight (2.2 lb = 1 kg) 3.7 kg / 8 lb 2.4 oz (8.15 lb)
Source of data - - Data from my own collection

Model page created by John Hupse † 28.9.20. See "Data change" for further contributors.
