- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1934 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 315231
- Wave bands
- - without
- Power type and voltage
- No Power needed

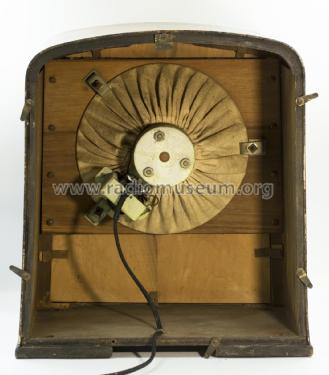

- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2133 - Philips; Eindhoven tubes

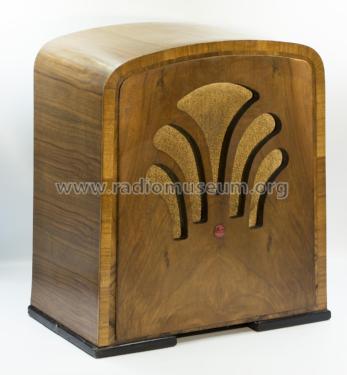

- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 350 x 388 x 206 mm / 13.8 x 15.3 x 8.1 inch
- Notes
-
impedenza 575 Ohm
- Net weight (2.2 lb = 1 kg)
- 4.850 kg / 10 lb 10.9 oz (10.683 lb)
- Author
- Model page created by Giuseppe Guerini. See "Data change" for further contributors.
- Other Models
-
Here you find 5307 models, 4459 with images and 3464 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Forum contributions about this model: Philips; Eindhoven: 2133
Threads: 1 | Posts: 1
Remark on Dutch forum "Nederlands Forum over Oude Radio's"
about this Philips 2133.
Case seems to be over stock Sierra S35A.
Aperently overstock of wooden case and so used by Philips for speaker box.
Even back cover originate from the model
LINK Forum remark.
Maurice Hamm, 01.Dec.25
