• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1952–1959

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 194548

• • Brand: Deutsche Philips-Ges.

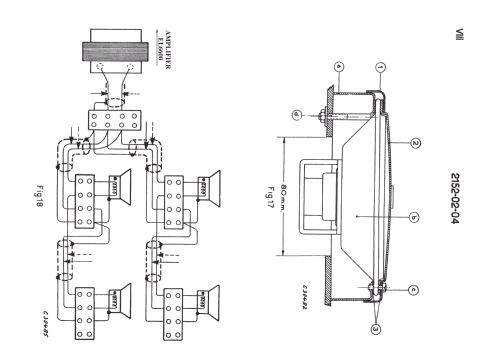

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch

• Material
• Metal case

• from Radiomuseum.org
• Model: 2152 /02 /04 - Philips Radios - Deutschland

• Shape
• Chassis only or for «building in»

• Notes
• Impedance: 5 Ohms. Max. input power: 3 W. For use in cars, auto-cars, etc.
  Special application with the Philips amplifier EL6600.

• Source of data
• -- Schematic

• Author
• Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
