Merlin 21CT620
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1960
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 216139
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6ES8 6BL8 6BY7 6EJ7 6EJ7 6DX8 6BL8 6BL8 6BM8 6BL8 6CS6 6BM8 6BX6 6CM5 6AL3 1S2 AW53-88
- Number of Transistors
- Semiconductors
- OA70 or. OA80 or. OA90 OA79 OA79 OA81 or. OA91 OA81 or. OA91 OA81 or. OA91 OA81 or. OA91 OA81 or. OA91 OA210 OA210
- Main principle
- Superhet with RF-stage; ZF/IF 36000/30500 kHz; 2 AF stage(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 200; 220; 240; 255 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

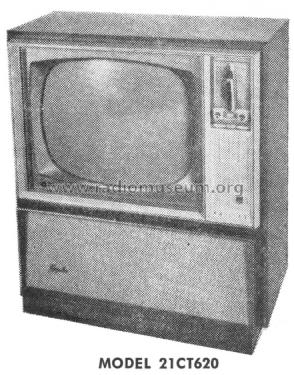

- Model: Merlin 21CT620 - Philips Australia
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 31 x 35 x 16.63 inch / 787 x 889 x 422 mm
- Notes
-
53 cm television set tunes the 10 then standard Australian VHF channels. This model has a wired remote control and a motorized tuner.
Cabinet finishes available in Maple, Walnut & Rose Mahogany.
- Net weight (2.2 lb = 1 kg)
- 122 lb (122 lb 0 oz) / 55.388 kg
- Price in first year of sale
- 229.95 AUS £
- Literature/Schematics (1)
- - - Manufacturers Literature (Philips Service Data, April 1960.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962, Page P12.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
