225B
Use red slider bar for more.
Philips Electrical,: 225B [Radio] ID = 905175 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1939 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: FC2A VP2B_Mullard TDD2A PM22A |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Storage and/or dry batteries / 90 & 2 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: 225B - Philips Electrical, Lamps, |
| Material | Leather / canvas / plastic - over other material |

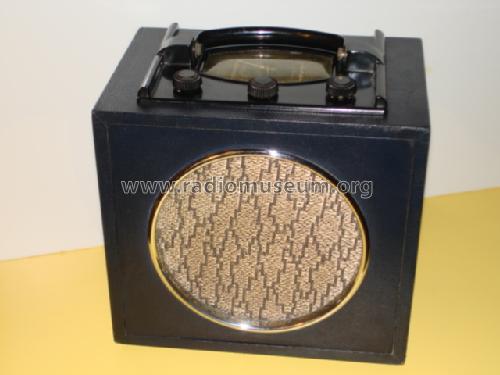

| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 300 x 300 x 200 mm / 11.8 x 11.8 x 7.9 inch |
| Notes | Built-in frame aerial. See also the Dutch model 225B and German Philips 225B. |
| Source of data | - - Data from my own collection |
Model page created by Hans De Seijn. See "Data change" for further contributors.
