22GF827 /04

22GF827 /04; Philips; Eindhoven (ID = 734555) R-Player

22GF827 /04; Philips; Eindhoven (ID = 734556) R-Player

22GF827 /04; Philips; Eindhoven (ID = 734558) R-Player

22GF827 /04; Philips; Eindhoven (ID = 734559) R-Player

22GF827 /04; Philips; Eindhoven (ID = 734561) R-Player

22GF827 /04; Philips; Eindhoven (ID = 734562) R-Player
22GF827 /04; Philips; Eindhoven (ID = 482600) R-Player 22GF827 /04; Philips; Eindhoven (ID = 734553) R-Player
Use red slider bar for more.
22GF827 /04; Philips; Eindhoven (ID = 482600) R-Player

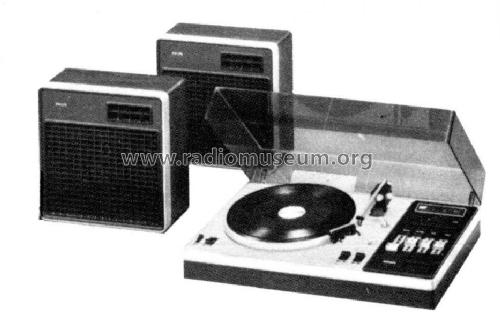

Philips; Eindhoven: 22GF827 /04 [R-Player] ID = 482600 526x404
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22GF827 /04, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1975 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 20: BC549 BC548 BC548 BC558 BC548 BC548 BC338 BC328 BD233 BD234
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 12 W (unknown quality)
from Radiomuseum.org Model: 22GF827 /04 - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Tablemodel, low profile (big size).
Notes Estereo 2 x 6 W. Lista de transistores de un canal. Only one channel transistors listed. Tocadiscos /Plattenspieler: 22GC027
Source of data -- Original-techn. papers.
Mentioned in Handbuch VDRG 1976/1977

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
