For model 22AH799 /00 /15 /25, Philips; Eindhoven (tubes international!); Miniwatt:
richardo.ch #1112899834 seller semi16

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1979/1980 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 60: TCA420 TDA1005 TDA1029 NE542 SAA1058 SAA1056 MK3870 CD4093 TLG306 SAA1060 CD4720 BB204 BB212 BA223 BC546 BC547 BC548 BC558 BC559 BC637 BC638 BD135 BD233 BD313 BD314 BF245 BF324 BF494 BF495 BF495 BPW22
Main principle PLL, Phase-locked loop
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 127; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 96 W (undistorted)
from Radiomuseum.org Model: 22AH799 /00 /15 /25 - Philips; Eindhoven tubes
Material Various materials
Shape Book-shelf unit.
Dimensions (WHD) 482 x 150 x 335 mm / 19 x 5.9 x 13.2 inch
Notes

Digital PLL-Tuner.

Power output: 2 x 48 W into 4 Ω (f = 1 kHz)
Frequency response: 15 Hz ... 25 kHz (±1.5 dB)
THD: 0.2% at 40 W

Wavebands:
FM = 87.5 - 108 MHz
MW = 520 - 1605 kHz
LW = 150 - 200 kHz

Connectors for Motional Feedback Speakers.

Some models come with wooden body, some are metal.
Some versions have a print "AM-FM Synthesized Receiver" on the front, while the 1979 brochure's image shows "Quartz-PLL Synthesizer".

Semiconductors only listed once per type.

Mentioned in -- Original prospect or advert (Discoteca HiFi, n. 208-209, Agosto-Settembre 1980 (I))

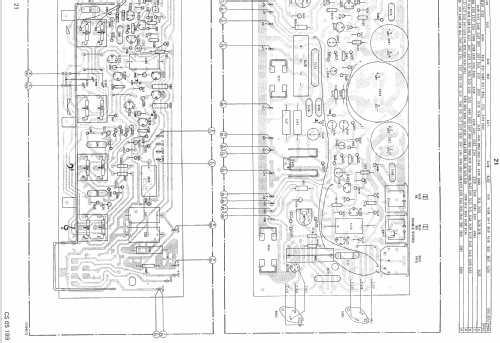

Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) -- Original prospect or advert (Philips High Fidelity Electronics, 1979/1980 (D))

Model page created by Hugo Litman. See "Data change" for further contributors.



All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 5021 models, 4211 with images and 3350 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips; Eindhoven: 22AH799 /00 /15 /25
Threads: 1 | Posts: 2
Hits: 3089     Replies: 1
philips: 22AH799 /00 /15 /25;
Gian-Fausto Balestra
22.Jan.12
  1
Hallo Radio Freunden
wo kann ich kaufen
Komponente - Mostek 3870 14246N
Code Philips - 4822 209 805 15
Vielen Dank für jede Hilfe.
! der Tuning-Bereich auf dem Display, aber ohne Ton!
Der Defekt kann aus dem Diagramm IC 6602 zu sehen

Cerco la ditta dove posso comperare il componente Mostek 3870 14246N
Con codice Philips 4822 209 805 15
Grazie per il Vostro aiuto.

Attachments

Daniel Consales
22.Jan.12
  2

Hello Mr. Balestra,

I've found on the net a few details about the MK3870


Accordingly, it is a mask programmable CPU. But if there is a display - I think it runs ?

Sorry I can't help more.

Kind regards,

Daniel Consales
