22CS5048 /16Z

22CS5048 /16Z; Philips Portugal (ID = 1225501) Television 22CS5048 /16Z; Philips Portugal (ID = 1225502) Television
22CS5048 /16Z; Philips Portugal (ID = 1225503) Television 22CS5048 /16Z; Philips Portugal (ID = 1225504) Television
Use red slider bar for more.

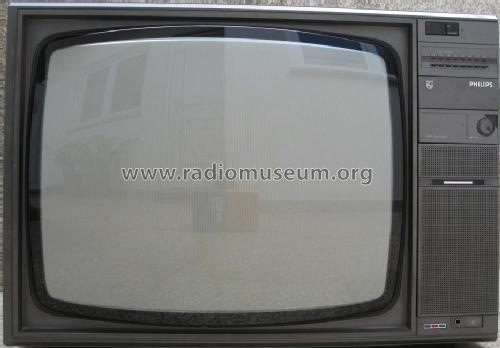

22CS5048 /16Z; Philips Portugal (ID = 1225501) Television
Philips Portugal: 22CS5048 /16Z [Television] ID = 1225501 933x650
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22CS5048 /16Z, Philips Portugal

Country:  Portugal
Manufacturer / Brand:  Philips Portugal
Brand

FAPAE
Year: 1988 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A56-540X
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out
from Radiomuseum.org Model: 22CS5048 /16Z - Philips Portugal
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 650 x 400 x 460 mm / 25.6 x 15.7 x 18.1 inch
Notes PAL, CCIR B/G, 8 presets. Made in Portugal. 75 W power consumption.

Model page created by Gil Silva. See "Data change" for further contributors.
