202 electronic 22GA202 /05T Ch= 22GC002; Philips Radios - (ID = 221114) R-Player

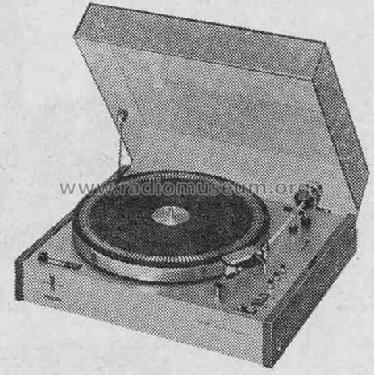

Philips Radios -: 202 electronic 22GA202 /05T Ch= 22GC002 [R-Player] ID = 221114 688x592
Select picture or schematic to display from thumbnails on the right and click for download.
For model 202 electronic 22GA202 /05T Ch= 22GC002 Mit Tachoregelung, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1970–1972 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 8: BC149 BC148 AC128 AD162 AC127 AC188 ASY26 BC149
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 202 electronic 22GA202 /05T Ch= 22GC002 [Mit Tachoregelung] - Philips Radios - Deutschland
Material Various materials
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 395 x 135 x 337 mm / 15.6 x 5.3 x 13.3 inch
Notes

Zweite Version des Philips 202 electronic, nun mit Tachoregelung der Motorsteuerung.

Merkmale:

  • Geschwindigkeit-Feinregulierung der 3 Geschindigkeiten 33 1/3, 45 und 78 Upm über erhabene Stellstifte
  • Ziereinlage des Plattentellers mit Stroboskopmarkierungen.

Siehe auch Vorgänger 202 electronic ohne Tachoregelung der Motorsteuerung.

Zubehör: Entzerrer-Vorverstärker 22GH905.

Chassis = 22GC002 /05T

Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Source of data -- Original-techn. papers.
Mentioned in Handbuch VDRG 1970/1971
Literature/Schematics (1) Handbuch VDRG 1971/1972
Literature/Schematics (2) HiFi-Jahrbuch 5, Verlag G. Braun Karlsruhe 1970

Model page created by a member from D. See "Data change" for further contributors.



All listed radios etc. from Philips Radios - Deutschland
Here you find 2518 models, 2240 with images and 1529 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips Radios -: 202 electronic 22GA202 /05T Ch= 22GC002
Threads: 1 | Posts: 1
Hits: 2282     Replies: 0
philips: 202 Electronic; Verbesserungen
Egon Strampe
05.Jan.09
  1

Aus Funktechnik 24/70.
