Up Beat 4 22GF110/45X
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1969–1971
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 221374
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 4
- Main principle
- Audio-Amplification; 3 AF stage(s)
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Line / Batteries (any type) / 6 x 1.5 or 110; 127; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.6 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Up Beat 4 22GF110/45X - Philips Australia
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 405 x 218 x 77 mm / 15.9 x 8.6 x 3 inch
- Notes
-

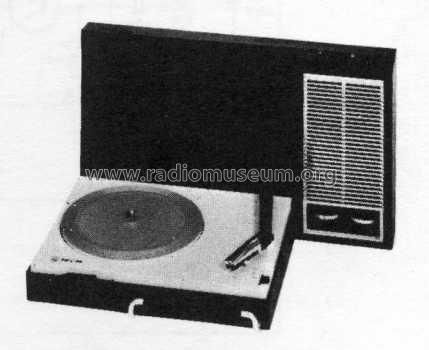

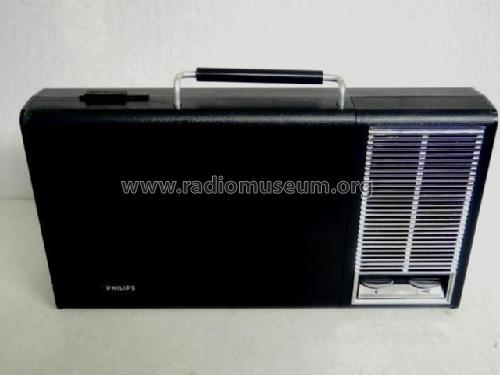

Portable 3-speed record player. This model differs from the 22GF110/45Z in having a dark blue cabinet.
Export model for the Australian market.
- Price in first year of sale
- 79.95 AUS $
- Literature/Schematics (1)
- - - Manufacturers Literature (Philips Service Notes.)
- Literature/Schematics (2)
- J.R. Publications Transistor Radio Service Handbook (Group G6, 1969, Page P1-8.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
