• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1969

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 171631

• • Brand: Deutsche Philips-Ges.

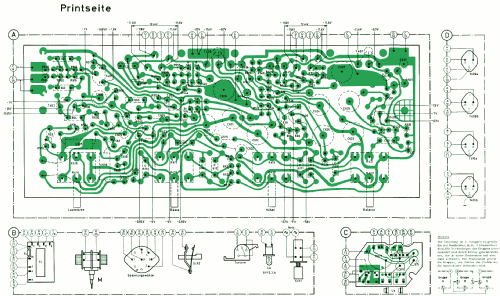

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• BC149 BC158 BC148 BC178 AD161 AD162 BA114 BC149 BC158 BC148 BC178 AD161 AD162 BA114

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 13 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 22GF628 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 410 x 256 x 195 mm / 16.1 x 10.1 x 7.7 inch

• Notes

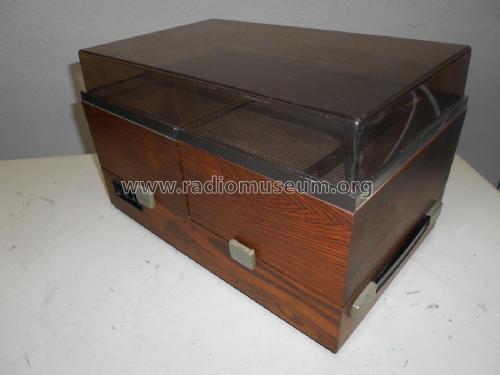

• Automatischer Plattenspieler mit Stereoverstärker 22GF628.
  16; 33 1/3; 45; 78 U/min.
  Zubehör: Klarsichtdeckel EG7368.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
