22GF907 /05 /15 /05S /15S

22GF907 /05 /15 /05S /15S; Philips; Eindhoven (ID = 748859) R-Player

22GF907 /05 /15 /05S /15S; Philips; Eindhoven (ID = 748860) R-Player

22GF907 /05 /15 /05S /15S; Philips; Eindhoven (ID = 748861) R-Player

22GF907 /05 /15 /05S /15S; Philips; Eindhoven (ID = 748862) R-Player

22GF907 /05 /15 /05S /15S; Philips; Eindhoven (ID = 748864) R-Player

22GF907 /05 /15 /05S /15S; Philips; Eindhoven (ID = 748865) R-Player

22GF907 /05 /15 /05S /15S; Philips; Eindhoven (ID = 748866) R-Player
22GF907 /05 /15 /05S /15S; Philips; Eindhoven (ID = 130140) R-Player 22GF907 /05 /15 /05S /15S; Philips; Eindhoven (ID = 130143) R-Player
22GF907 /05 /15 /05S /15S; Philips; Eindhoven (ID = 130141) R-Player 22GF907 /05 /15 /05S /15S; Philips; Eindhoven (ID = 130142) R-Player
22GF907 /05 /15 /05S /15S; Philips; Eindhoven (ID = 130144) R-Player 22GF907 /05 /15 /05S /15S; Philips; Eindhoven (ID = 298733) R-Player
22GF907 /05 /15 /05S /15S; Philips; Eindhoven (ID = 748858) R-Player
Use red slider bar for more.
22GF907 /05 /15 /05S /15S; Philips; Eindhoven (ID = 130140) R-Player
Philips; Eindhoven: 22GF907 /05 /15 /05S /15S [R-Player] ID = 130140 933x663
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22GF907 /05 /15 /05S /15S, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1974–1978 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 28: BC549 BC548 BC558 BC338 BC328 BD436 BD435 BA315 OA95 BA314 BY126 BZX79
Main principle Audio-Amplification
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 14 W (unknown quality)
from Radiomuseum.org Model: 22GF907 /05 /15 /05S /15S - Philips; Eindhoven tubes
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 485 x 125 x 400 mm / 19.1 x 4.9 x 15.7 inch

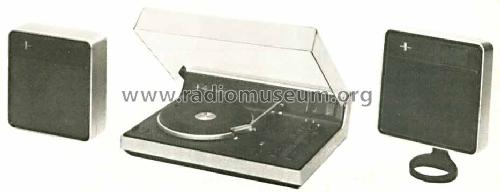

Notes Phono-Chassis = 22GC027 oder 22GC007; Verstärker 2× 7 Watt; zwei Lautsprecherboxen (27×10×27 cm) im Lieferumfang.
Einige Halbleitertypen mehrfach vorhanden.
Das VDRG-Handbuch 1974 nennt irrtümlich 2x 10 Watt (Sinus) Ausgangsleistung und 16 Transistoren.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Source of data -- Original-techn. papers.
Mentioned in Handbuch VDRG 1974/1975

Model page created by Hugo Sneyers. See "Data change" for further contributors.
