22GH925 (AG9025) /00

22GH925 /00; Philips; Eindhoven (ID = 776235) Ampl/Mixer

22GH925 /00; Philips; Eindhoven (ID = 776236) Ampl/Mixer

22GH925 /00; Philips; Eindhoven (ID = 776237) Ampl/Mixer

22GH925 /00; Philips; Eindhoven (ID = 1520271) Ampl/Mixer

22GH925 /00; Philips; Eindhoven (ID = 1520272) Ampl/Mixer

22GH925 /00; Philips; Eindhoven (ID = 1520273) Ampl/Mixer

22GH925 /00; Philips; Eindhoven (ID = 1520274) Ampl/Mixer

22GH925 /00; Philips; Eindhoven (ID = 1520275) Ampl/Mixer

22GH925 /00; Philips; Eindhoven (ID = 1520276) Ampl/Mixer

22GH925 /00; Philips; Eindhoven (ID = 2611883) Ampl/Mixer
22GH925 /00; Philips; Eindhoven (ID = 1219480) Ampl/Mixer 22GH925 /00; Philips; Eindhoven (ID = 776234) Ampl/Mixer

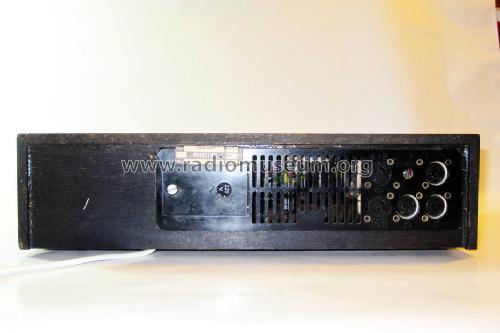

22GH925 /00; Philips; Eindhoven (ID = 1219483) Ampl/Mixer 22GH925 /00; Philips; Eindhoven (ID = 1219485) Ampl/Mixer
22GH925 /00; Philips; Eindhoven (ID = 1219496) Ampl/Mixer 22GH925 /00; Philips; Eindhoven (ID = 1219505) Ampl/Mixer
Use red slider bar for more.
22GH925 /00; Philips; Eindhoven (ID = 1219480) Ampl/Mixer
Philips; Eindhoven: 22GH925 /00 [Ampl/Mixer] ID = 1219480 933x621
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22GH925 (AG9025) /00, Philips; Eindhoven (tubes international!); Miniwatt:
eigenes Foto

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1967 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 12: AC126 AC126 AC126 AC126 AD149 AD149 AC126 AC126 AC126 AC126 AD149 AD149 BY100 OAZ207
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 7 W (undistorted)
from Radiomuseum.org Model: 22GH925 /00 - Philips; Eindhoven tubes
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 315 x 85 x 210 mm / 12.4 x 3.3 x 8.3 inch
Notes
Stereo amplifier, RMS power 2 x 3.5 Watt in 8 Ohm.
Inputs: Tape in/out; PU xtal.

Net weight (2.2 lb = 1 kg) 2.250 kg / 4 lb 15.3 oz (4.956 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
