22GH930 /00 /29

22GH930 /00 /29; Philips; Eindhoven (ID = 888656) Radio

22GH930 /00 /29; Philips; Eindhoven (ID = 888657) Radio

22GH930 /00 /29; Philips; Eindhoven (ID = 888658) Radio

22GH930 /00 /29; Philips; Eindhoven (ID = 888659) Radio

22GH930 /00 /29; Philips; Eindhoven (ID = 888660) Radio

22GH930 /00 /29; Philips; Eindhoven (ID = 888661) Radio

22GH930 /00 /29; Philips; Eindhoven (ID = 888662) Radio

22GH930 /00 /29; Philips; Eindhoven (ID = 888663) Radio

22GH930 /00 /29; Philips; Eindhoven (ID = 888664) Radio

22GH930 /00 /29; Philips; Eindhoven (ID = 888665) Radio
22GH930 /00 /29; Philips; Eindhoven (ID = 2527556) Radio 22GH930 /00 /29; Philips; Eindhoven (ID = 2527557) Radio
22GH930 /00 /29; Philips; Eindhoven (ID = 2527558) Radio 22GH930 /00 /29; Philips; Eindhoven (ID = 2527559) Radio
22GH930 /00 /29; Philips; Eindhoven (ID = 2527560) Radio 22GH930 /00 /29; Philips; Eindhoven (ID = 1521037) Radio
Use red slider bar for more.
22GH930 /00 /29; Philips; Eindhoven (ID = 2527556) Radio

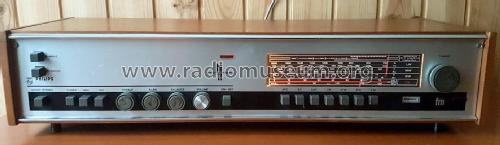

Philips; Eindhoven: 22GH930 /00 /29 [Radio] ID = 2527556 1386x402
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22GH930 /00 /29, Philips; Eindhoven (tubes international!); Miniwatt:
vatera.hu_2874085289, seller Keresztespok70

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 30: AF102 AF125 AF121 AF121 AF125 AF121 AF121 AC126 AC126 AC126 AC126 AC125 AC125 AC127 AC126 AC126 AC172 AC125 AC127 AC132 AD149 AD149 AC126 AC126 AC172 AC125 AC127 AC132 AD149 AD149
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 14 W (unknown quality)
from Radiomuseum.org Model: 22GH930 /00 /29 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 662 x 105 x 220 mm / 26.1 x 4.1 x 8.7 inch
Notes
  • AM radio:
    • LW: 150 - 400 kHz.
    • BC: 517 - 1622 kHz.
    • SW: 5.9 - 18.2 MHz.
  • FM radio: 87.5 - 108 MHz.
  • Amplifier: 2 x 7 Watt RMS in 8 Ohm.
  • Amplifier inputs:
    • PU magn: 1.3 mV / 6 KOhm.
    • PU Xtal: 48 mV / 220 kOhm.
    • Tuner: 41 mV / 70 kOhm.
    • Tape: 110 mV / 41 kOhm.
  • Contains diodes: 11 x AA119, 2 x OA90, 3 x OA200, 1 x BA102, 1 x BZY59, 1 x BZY61, 2 x BY114.



Source of data -- Original-techn. papers.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Dirk Bladt. See "Data change" for further contributors.
