For model 22GH943 /00 /00Z /16 /16Z /22 /22Z, Philips; Eindhoven (tubes international!); Miniwatt:
Aus dem Service-Manual

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1969 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 16: BC109 AC126 AC172 AC125 AC127 AC132 AD149 BY114
Main principle Audio-Amplification; 6 AF stage(s)
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker
Power out 14 W (undistorted)
from Radiomuseum.org Model: 22GH943 /00 /00Z /16 /16Z /22 /22Z - Philips; Eindhoven tubes
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 340 x 145 x 215 mm / 13.4 x 5.7 x 8.5 inch
Notes

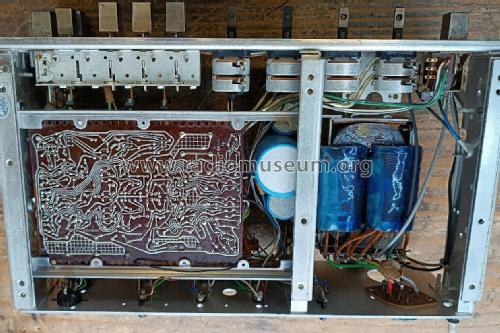

Stereo-HiFi-Verstärker mit 2x 7W Sinusleistung bei k ≤2% an 8Ω, 4 x AD149 in den Endstufen, Anschlüsse Tuner, PU-Crystal, PU-Dynamic, Tape (alle DIN), Lsp-DIN-Buchsen mit integrierem Umschalter 4/8Ohm, Schnittbandkern-Netztrafo, Faserplatten-Rückwand, hand-entworfene Leiterplatte.

Jeder Halbleiter-Typ ist einmal gelistet.

Source of data -- Original-techn. papers.

Model page created by Urs Gloor. See "Data change" for further contributors.
