22RB261 /00S /00L /00B; Philips; Eindhoven (ID = 830908) Radio
Philips; Eindhoven: 22RB261 /00S /00L /00B [Radio] ID = 830908 933x458
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22RB261 /00S /00L /00B, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner

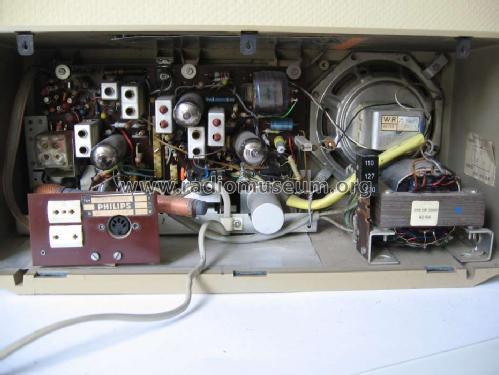

Valves / Tubes 3: ECH81 EBF89 ECL86
Semiconductors (the count is only for transistors) 2: AF124 AF125
Main principle Superheterodyne (common); ZF/IF 452'/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: 22RB261 /00S /00L /00B - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 380 x 172 x 157 mm / 15 x 6.8 x 6.2 inch
Notes
  • Cabinet colors available:
    • /00L = red
    • /00B = grey
    • /00S = beige
Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Jos van den Broek. See "Data change" for further contributors.
