22RB381 /03E; Philips Radios - (ID = 115684) Radio
Philips Radios -: 22RB381 /03E [Radio] ID = 115684 600x289
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22RB381 /03E, Philips Radios - Deutschland:

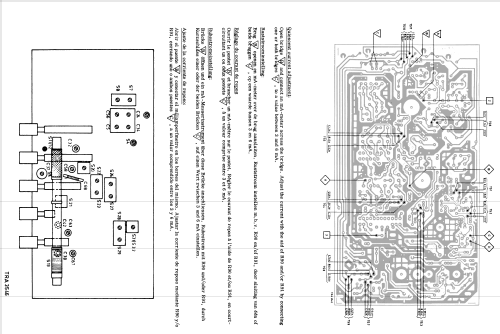

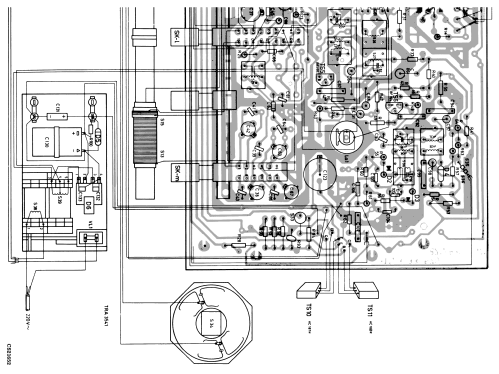

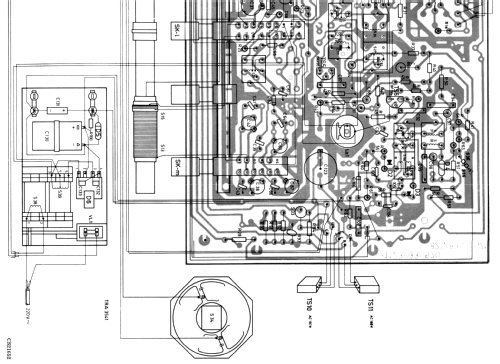

service manual

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1978 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11:
Main principle Superheterodyne (common); Export model
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 22RB381 /03E - Philips Radios - Deutschland
Material Various materials
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 175 x 115 mm / 19.7 x 6.9 x 4.5 inch
Notes

Wellenbereich: MG1, MG2, LG, KG und UKW

Das Gerät hat eine Skala für Belgien/Niederlande.

Source of data -- Original-techn. papers.

Model page created by Hugo Sneyers. See "Data change" for further contributors.
