22RB564 /00 /01

22RB564 /00 /01; Philips; Eindhoven (ID = 1258803) Radio

22RB564 /00 /01; Philips; Eindhoven (ID = 1258799) Radio

22RB564 /00 /01; Philips; Eindhoven (ID = 1258800) Radio

22RB564 /00 /01; Philips; Eindhoven (ID = 1258801) Radio

22RB564 /00 /01; Philips; Eindhoven (ID = 2010849) Radio

22RB564 /00 /01; Philips; Eindhoven (ID = 2010850) Radio

22RB564 /00 /01; Philips; Eindhoven (ID = 2010851) Radio

22RB564 /00 /01; Philips; Eindhoven (ID = 2010852) Radio

22RB564 /00 /01; Philips; Eindhoven (ID = 2010853) Radio

22RB564 /00 /01; Philips; Eindhoven (ID = 2010854) Radio
22RB564 /00 /01; Philips; Eindhoven (ID = 115687) Radio 22RB564 /00 /01; Philips; Eindhoven (ID = 2073894) Radio
22RB564 /00 /01; Philips; Eindhoven (ID = 2073895) Radio 22RB564 /00 /01; Philips; Eindhoven (ID = 2073896) Radio
22RB564 /00 /01; Philips; Eindhoven (ID = 2073897) Radio 22RB564 /00 /01; Philips; Eindhoven (ID = 2073898) Radio
22RB564 /00 /01; Philips; Eindhoven (ID = 2073899) Radio 22RB564 /00 /01; Philips; Eindhoven (ID = 2074267) Radio
Use red slider bar for more.
22RB564 /00 /01; Philips; Eindhoven (ID = 115687) Radio

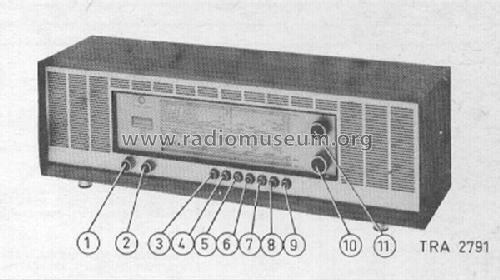

Philips; Eindhoven: 22RB564 /00 /01 [Radio] ID = 115687 600x336
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22RB564 /00 /01, Philips; Eindhoven (tubes international!); Miniwatt:
service manual

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1968 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: PC900 PC900 ECH81 EF183 EM87 ECL86 ECL86
Semiconductors (the count is only for transistors) 6: AF126 AF126 AC126 AC126 AC126 AC128 OA79 AA119 BY127 OA95
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 125-220 Volt
Loudspeaker 2 Loudspeakers
Power out 7 W (unknown quality)
from Radiomuseum.org Model: 22RB564 /00 /01 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 650 x 220 x 200 mm / 25.6 x 8.7 x 7.9 inch
Notes

FM 87.5 - 104 MHz. Cabinets differ between versions /00 and /01.

Diodes mentioned once per type.

Source of data -- Original-techn. papers.

Model page created by Hugo Sneyers. See "Data change" for further contributors.
