22RC599 /00

22RC599 /00; Philips France; (ID = 936969) Car Radio 22RC599 /00; Philips France; (ID = 936970) Car Radio
22RC599 /00; Philips France; (ID = 936971) Car Radio 22RC599 /00; Philips France; (ID = 936972) Car Radio
22RC599 /00; Philips France; (ID = 939233) Car Radio 22RC599 /00; Philips France; (ID = 956150) Car Radio
Use red slider bar for more.
22RC599 /00; Philips France; (ID = 936969) Car Radio
Philips France;: 22RC599 /00 [Car Radio] ID = 936969 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22RC599 /00, Philips France; Paris:
Auto-Cassetten-Radio Philips 22 RC 599 / 00, Front

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1998 Category: Car Radio, perhaps also + sound player/recorder
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 88 W (unknown quality)
from Radiomuseum.org Model: 22RC599 /00 - Philips France; Paris
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 51 x 160 mm / 7.1 x 2 x 6.3 inch

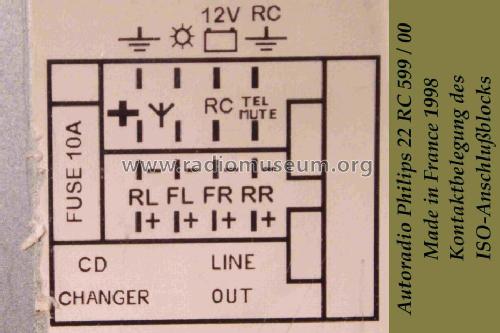

Notes Cassetten-Auto-Radio von Philips (Made in France) mit den Empfangsbändern UKW / MW / LW / KW (49-m-Band). Radio-Data-System (RDS) mit 42 Stationsspeichern. Verkehrsfunkdurchsage. 4 x 35 Watt (4 x 22 Watt nach DIN) Ausgangsleistung; digitale NF-Verarbeitung; 4 x Vorverstärkerausgänge. Anschlüsse vorhanden für CD-Spieler und Fernbedienung "Le Mouse". An der Rückseite genormter ISO-Anschlußblock, auch für Antenne. Zusätzlicher DIN-Antennen-Stecker. Diebstahlsicherung durch abnehmbare Frontplatte. Speicherplätze für: 18 UKW-Sender ( 6 x FM1, 6 x FM2, 6 x FM3); 12 MW-Sender ( 6 x MW1, 6 x MW 2) ; 6 LW-Sender ( 6 x LW) und 6 KW-Sender ( 6 x KW).
Net weight (2.2 lb = 1 kg) 1.450 kg / 3 lb 3.1 oz (3.194 lb)
Price in first year of sale 680.00 DM
Mentioned in Bedienungsanleitung RC599 RDS Philips Car Systems von 2 / 1998

Model page created by Heinrich Hollmann. See "Data change" for further contributors.
