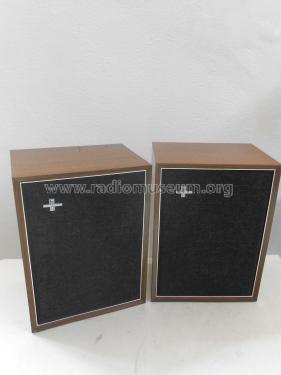

22RH453 /01Z

22RH453 /01Z; Philips; Eindhoven (ID = 2232797) Speaker-P 22RH453 /01Z; Philips; Eindhoven (ID = 2232798) Speaker-P
22RH453 /01Z; Philips; Eindhoven (ID = 2232799) Speaker-P 22RH453 /01Z; Philips; Eindhoven (ID = 2232800) Speaker-P
22RH453 /01Z; Philips; Eindhoven (ID = 2232802) Speaker-P 22RH453 /01Z; Philips; Eindhoven (ID = 2232803) Speaker-P
Use red slider bar for more.
22RH453 /01Z; Philips; Eindhoven (ID = 2232797) Speaker-P
Philips; Eindhoven: 22RH453 /01Z [Speaker-P] ID = 2232797 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22RH453 /01Z, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1975 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details Hi-Fi equipment
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out 35 W (max.)
from Radiomuseum.org Model: 22RH453 /01Z - Philips; Eindhoven tubes
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 285 x 380 x 210 mm / 11.2 x 15 x 8.3 inch
Notes
2-way configuration, closed box, paper cone woofer Philips AD8066/W4 200mm, rubber surround, dome tweeter Philips AD0161 25mm, impedenza: 4 Ω, frequency response: 45-20000 Hz.
Made in Holland.
Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
