22RH741 /00Z

22RH741 /00Z; Philips; Eindhoven (ID = 2540231) Radio

22RH741 /00Z; Philips; Eindhoven (ID = 2540232) Radio

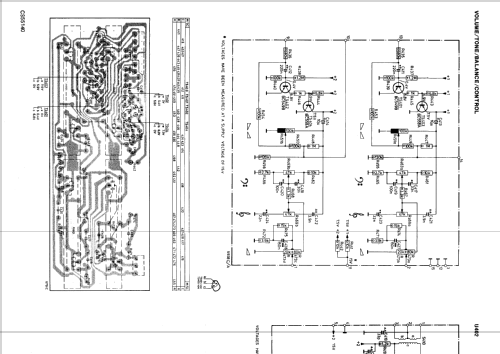

22RH741 /00Z; Philips; Eindhoven (ID = 2540233) Radio

22RH741 /00Z; Philips; Eindhoven (ID = 2540234) Radio

22RH741 /00Z; Philips; Eindhoven (ID = 2540235) Radio

22RH741 /00Z; Philips; Eindhoven (ID = 2540236) Radio

22RH741 /00Z; Philips; Eindhoven (ID = 2540237) Radio

22RH741 /00Z; Philips; Eindhoven (ID = 2540238) Radio
22RH741 /00Z; Philips; Eindhoven (ID = 815650) Radio 22RH741 /00Z; Philips; Eindhoven (ID = 815653) Radio
22RH741 /00Z; Philips; Eindhoven (ID = 815651) Radio 22RH741 /00Z; Philips; Eindhoven (ID = 815652) Radio
22RH741 /00Z; Philips; Eindhoven (ID = 165783) Radio 22RH741 /00Z; Philips; Eindhoven (ID = 2540078) Radio
22RH741 /00Z; Philips; Eindhoven (ID = 2618796) Radio 22RH741 /00Z; Philips; Eindhoven (ID = 2618797) Radio
Use red slider bar for more.
22RH741 /00Z; Philips; Eindhoven (ID = 815650) Radio
Philips; Eindhoven: 22RH741 /00Z [Radio] ID = 815650 933x579
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22RH741 /00Z, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1974 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 18: BC547 BF495 BC159 2SC1312 BD135 BD262 TCA290 TCA420
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 18 W (28 W max.)
from Radiomuseum.org Model: 22RH741 /00Z - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Book-shelf unit.
Dimensions (WHD) 528 x 100 x 220 mm / 20.8 x 3.9 x 8.7 inch
Notes

AM (LW - MW - SW) and FM stereo receiver with power amplifier. FM stereo indicator light. Internal ferrite antenna for AM. Jack for external FM antenna.
Input for tape or cassette recorder and pick-up. Treble, bass and balance controls. Output for headphones with switch for speakers.
Output power: 2 x 9 W Sinus. 2 x 14 W music power.

Transistors listed once per type.

Net weight (2.2 lb = 1 kg) 4.2 kg / 9 lb 4 oz (9.251 lb)
Mentioned in -- Original-techn. papers.

Model page created by Gidi Verheijen. See "Data change" for further contributors.
