22RL233

22RL233 ; Philips France; (ID = 2165005) Radio
Use red slider bar for more.
22RL233 ; Philips France; (ID = 2165005) Radio

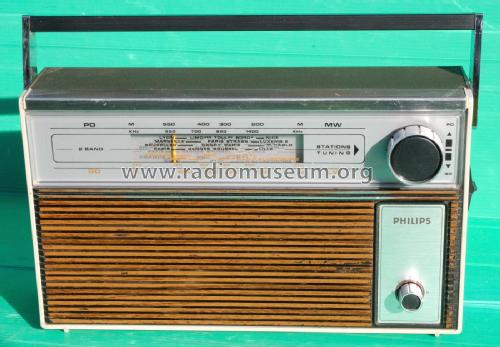

Philips France;: 22RL233 [Radio] ID = 2165005 1400x974
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22RL233, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present. AC187 AC188
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: 22RL233 - Philips France; Paris
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 294 x 171 x 87 mm / 11.6 x 6.7 x 3.4 inch
Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)

Model page created by Jean-Louis Buton. See "Data change" for further contributors.
