• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 239916

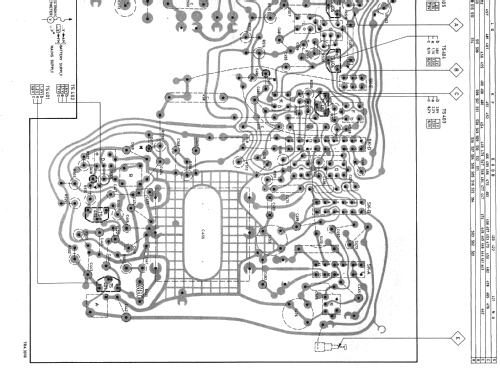

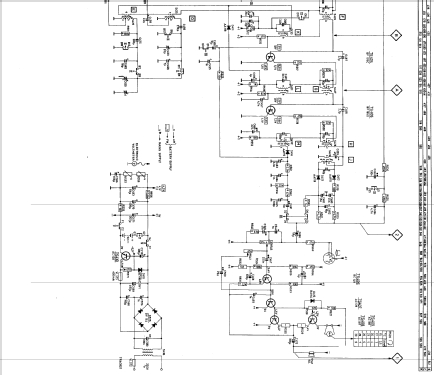

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BF194 BF195 BC149 AC128 AC187 AC188 AC128 AA119 BA102 BA114 BZY88 BY164

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / D: 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.75 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

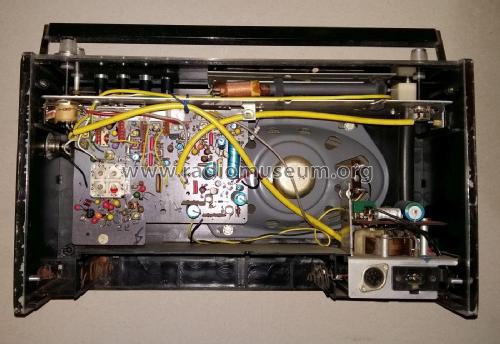

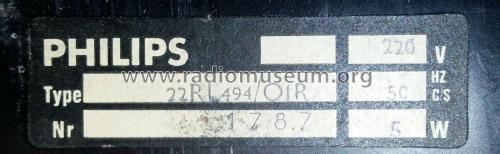

• Model: 22RL494 /01R - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 335 x 195 x 95 mm / 13.2 x 7.7 x 3.7 inch

• Notes

• Wave ranges:
  MW: 520 - 1620 kHz.
  SW: 6 - 12 MHz.
  FM: 87,5 - 104 MHz.
  One semiconductor per type listed.

• Net weight (2.2 lb = 1 kg)
• 2.150 kg / 4 lb 11.8 oz (4.736 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
