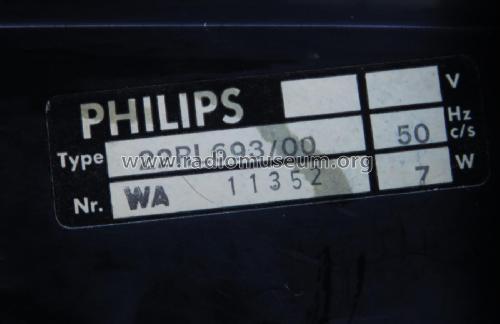

For model 22RL693 /00, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1970/1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: BF194 BF195 BC149 BC148 BC178 AC187 AC188 AA119 BZY88 BA148
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Tuned circuits 4 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 117; 220 / 6 x 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: 22RL693 /00 - Philips; Eindhoven tubes
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 388 x 233 x 114 mm / 15.3 x 9.2 x 4.5 inch
Notes

Wave ranges:
LW: 148,5 - 263 kHz.
MW2: 517 - 1285 kHz.
MW1: 1235 - 1622 kHz.
SW: 5,9 - 18,08 MHz.
FM: 87,5 - 104 MHz.
One semiconductor per type listed.

See also German Philips 22RL693.

Net weight (2.2 lb = 1 kg) 7.8 kg / 17 lb 2.9 oz (17.181 lb)
Mentioned in -- Original-techn. papers.
