22RN314 /00

22RN314 /00; Philips; Eindhoven (ID = 1606619) Car Radio

22RN314 /00; Philips; Eindhoven (ID = 1606620) Car Radio

22RN314 /00; Philips; Eindhoven (ID = 1606621) Car Radio

22RN314 /00; Philips; Eindhoven (ID = 1606622) Car Radio

22RN314 /00; Philips; Eindhoven (ID = 1606623) Car Radio

22RN314 /00; Philips; Eindhoven (ID = 1606624) Car Radio

22RN314 /00; Philips; Eindhoven (ID = 1606625) Car Radio

22RN314 /00; Philips; Eindhoven (ID = 1606626) Car Radio

22RN314 /00; Philips; Eindhoven (ID = 1606627) Car Radio

22RN314 /00; Philips; Eindhoven (ID = 1606628) Car Radio
22RN314 /00; Philips; Eindhoven (ID = 2117336) Car Radio
Use red slider bar for more.
22RN314 /00; Philips; Eindhoven (ID = 2117336) Car Radio
Philips; Eindhoven: 22RN314 /00 [Car Radio] ID = 2117336 1400x749

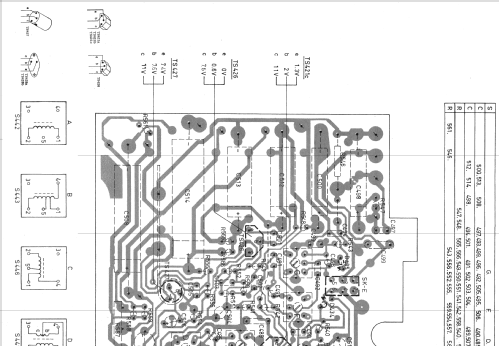

Select picture or schematic to display from thumbnails on the right and click for download.
For model 22RN314 /00, Philips; Eindhoven (tubes international!); Miniwatt:
Gerät liegt in der Sammlung "Philips Historische Producten" in Eindhoven.

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1971 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 7: BF194 BF195 BF195 BC149 AC127 AD161 AD162 AA119
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: 22RN314 /00 - Philips; Eindhoven tubes
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 178 x 44 x 88 mm / 7 x 1.7 x 3.5 inch
Notes

Wave range:
LW: 150 - 260 kHz.
MW: 512 - 1622 kHz.



Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)
Mentioned in -- Original-techn. papers.

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
