• Year
  • 1967 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 241941

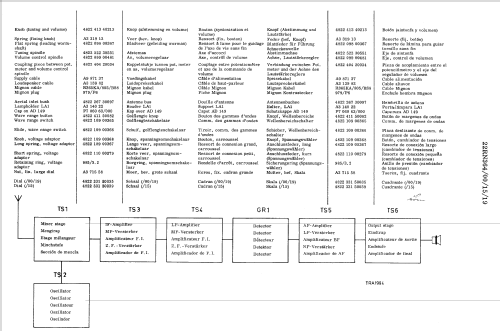

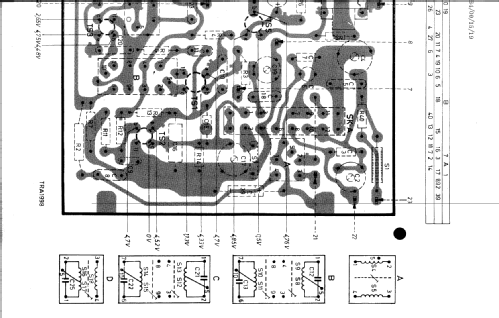

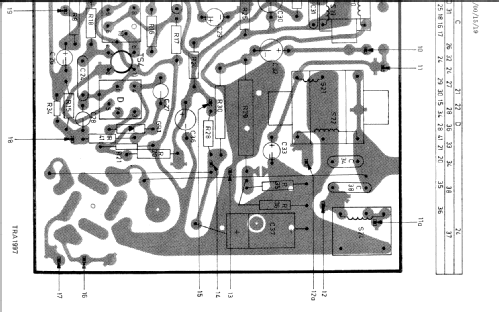

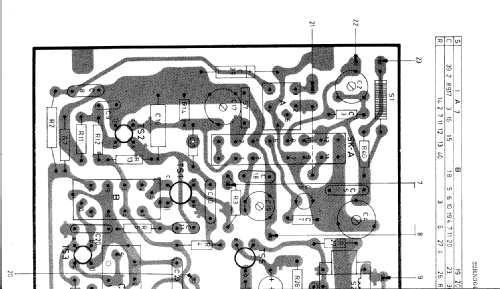

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s); Export model
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 1.25 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 22RN364 /19 - Philips; Eindhoven tubes
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 181 x 54 x 155 mm / 7.1 x 2.1 x 6.1 inch
  • Notes
    • AM radio:
      • LW: 150 - 260 kHz.
      • BC: 512 - 1612 kHz.
    • Amplifier: 1 x 1.25 Watt in 5 Ohm.
    • Power supply can be set with switches for:
      • 6V (negative to earth)
      • 12V (negative to earth)
      • 12V (positive to earth).
  • Mentioned in
  • -- Original-techn. papers.
