- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 204828

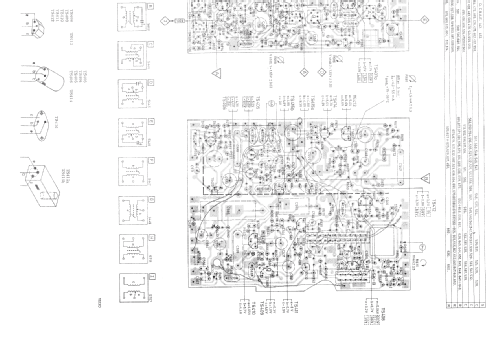

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 19
- Semiconductors
- BF195 BF194 BF195 AC128 AC127 AC127 AC126 BC149 BC149 BC148 BC148 BC149 BC148 BC178 AC187 AC188 AD162 BF195 BF195
- Main principle
- Superhet with RF-stage; ZF/IF 452 / 10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 110-220 / 6x1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: 22RR512 /00 - Philips; Eindhoven tubes
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 337 x 205 x 96 mm / 13.3 x 8.1 x 3.8 inch
- Notes
- Transistors: BF195C BF194B BF195D AC128 AC127 AC127 AC126 BC149B BC149B BC148A BC148B BC149B BC148b BC178A AC187 AC188 AD162 BF195 BF195
- Source of data
- -- Original-techn. papers.
- Literature/Schematics (1)
- Service Manual
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
