22RR645 /19; Philips; Eindhoven (ID = 863486) Radio

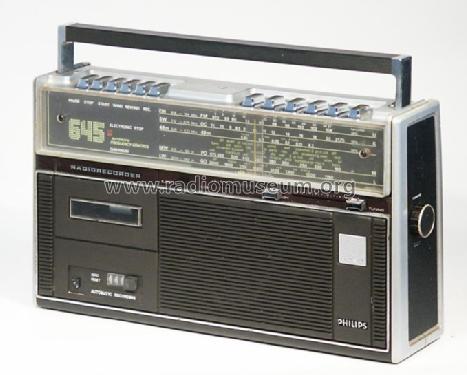

Philips; Eindhoven: 22RR645 /19 [Radio] ID = 863486 679x545
Select picture or schematic to display from thumbnails on the right and click for download.
For model 22RR645 /19, Philips; Eindhoven (tubes international!); Miniwatt:
Picture from an ended eBay auction, created by franxpost

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1976–1978 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 21:
Main principle Superheterodyne (common)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / C: 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3.6 W (unknown quality)
from Radiomuseum.org Model: 22RR645 /19 - Philips; Eindhoven tubes
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 365 x 210 x 90 mm / 14.4 x 8.3 x 3.5 inch
Notes

Frequency ranges:
LW 150 -   260 kHz
MW 520 - 1605 kHz
SW 7,10 - 21,75 Mhz, 41 - 13 m; 49 m: 5,95 - 6,20 MHz
FM 87,5 - 104 MHz.
Fine tuning for shortwave. AFC
Recorder stops automatically at the end of the tape.
Built-in microphone and automatic recording level.
25 diodes.

Bei den meisten anderen Kassettengeräten kann man mit der "Stop" - Taste auch den Kassettendeckel öffnen. Aber bei diesem Gerät muß man nicht nur die "Stop" - Taste drücken, sondern danach noch die "Eject" - Taste bewegen.

Net weight (2.2 lb = 1 kg) 3.3 kg / 7 lb 4.3 oz (7.269 lb)
Literature/Schematics (1) Catalog Philips Audio NL 1977 and 1978

Model page created by Felice Nicolini. See "Data change" for further contributors.
