Néprádió 22U

Néprádió 22U; Philips; Budapest (ID = 234793) Radio

Néprádió 22U; Philips; Budapest (ID = 263263) Radio
Néprádió 22U; Philips; Budapest (ID = 381556) Radio Néprádió 22U; Philips; Budapest (ID = 474042) Radio
Néprádió 22U; Philips; Budapest (ID = 897803) Radio Néprádió 22U; Philips; Budapest (ID = 897804) Radio
Néprádió 22U; Philips; Budapest (ID = 2227759) Radio Néprádió 22U; Philips; Budapest (ID = 2347797) Radio
Use red slider bar for more.
Néprádió 22U; Philips; Budapest (ID = 381556) Radio
Philips; Budapest: Néprádió 22U [Radio] ID = 381556 583x604
Select picture or schematic to display from thumbnails on the right and click for download.
For model Néprádió 22U, Philips; Budapest

Country:  Hungary
Manufacturer / Brand:  Philips; Budapest
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner

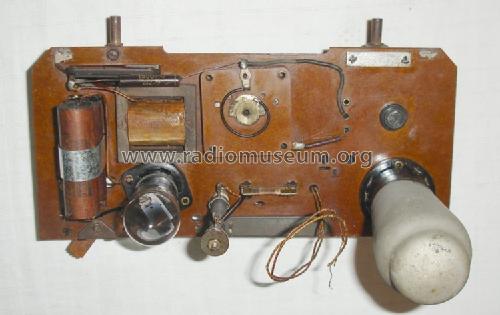

Valves / Tubes 2: VCL11 VY2
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931).
Power out
from Radiomuseum.org Model: Néprádió 22U - Philips; Budapest

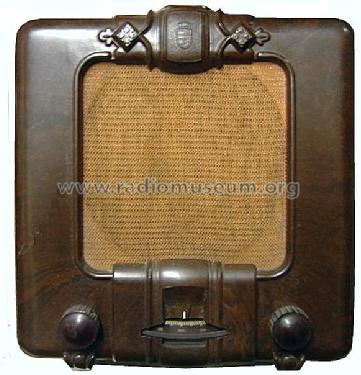

Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 240 x 250 x 120 mm / 9.4 x 9.8 x 4.7 inch
Notes Ähnlich wie DKE.
Price in first year of sale 45.00 Pengő
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.
