23CX463A /01 /07
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1965 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 240260

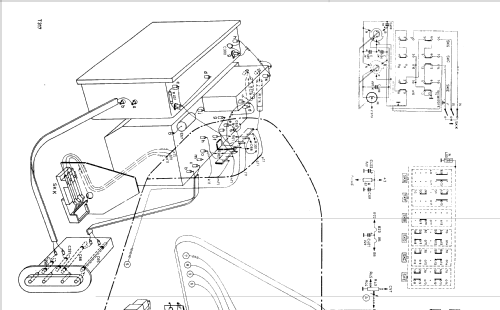

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 24
- Valves / Tubes
- EF184 EF184 PCL86 PCL85 PCC189 PCF86 EF183 EF183 EF184 PCF80 PCL84 ECC82 PCF80 ECH83 PCF80 PL500 PY88 DY87 ECH83 PCF80 PF86 PCL85 ECC82 A59-11W
- Number of Transistors
- 2
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 23CX463A /01 /07 - Philips; Eindhoven tubes
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 800 x 940 x 440 mm / 31.5 x 37 x 17.3 inch
- Notes
-
- Transformerless audio output stage.
- 5 standard receiver:
- Type of loudspeakers: 1 x AD3800AM + 1 x AD2300CZ.
- VHF channels: (tuner A3 293 43): E2-E11, F6, F8a.
- UHF (tuner A3 715 96): 470-862 MHz.
- Remote control unit AT6320-03.

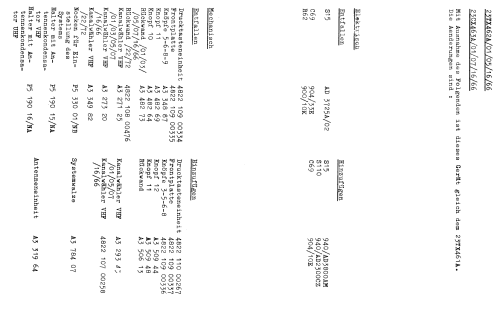

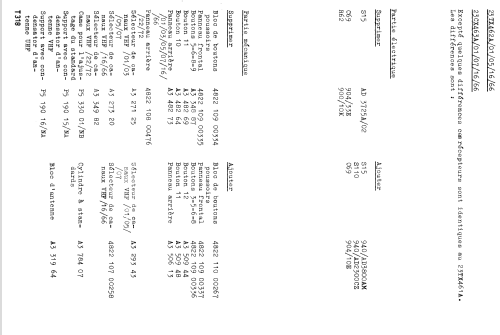

Basically the same TV as 23TX461A. For the differences see the technical document uploaded to this model.
