• Country
• Australia

• Manufacturer / Brand
• Philips Australia

• Year
• 1961/1962

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 215990

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6ES8 6BL8 6BY7 6EJ7 6EJ7 6DX8 6BL8 6BL8 6BM8 6BL8 6CS6 6BM8 6BL8 6CM5 6AL3 1S2 AW59-90 or AW59-30

• Number of Transistors

• Semiconductors
• OA80 OA79 OA79 OA81 OA80 OA81 OA81 OA81 OA210 OA210

• Main principle
• Superhet with RF-stage; ZF/IF 36000/30500 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 200; 220; 240; 255 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: 23TT6/110 - Philips Australia

• Shape
• Console, Highboy (legs > 50 %).

• Dimensions (WHD)
• 25.5 x 19.75 x 17.5 inch / 648 x 502 x 445 mm

• Notes

• Philips Model 110

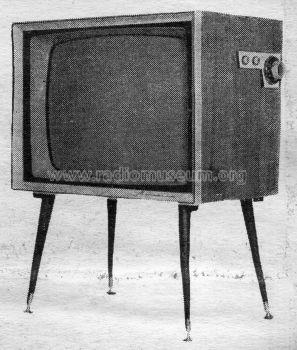

  A 23" (59 cm) lowboy TV receiver having 110° aluminised picture tube, 16 valves, eight germanium and two silicon diodes, four voltage-dependent resistors. Cabinet, on legs, with pads for alternative table mounting, finished in maple, or walnut.

  Features: aerial input 300 ohms. Turret tuner for 13 channels. Three stage-stage vision IF with frame-grid valves; two sound IF stages with ratio detector giving full fringe performance. DC coupling to picture tube. Noise-gated and delayed AGC, noise gate. Stabilised vertical, horizontal and EHT circuits. Triplex tinted safety screen. Speaker: side mounted, 7" x 5"

  Controls: side - channel selector, fine tuning, volume/on-off, brightness/contrast, illuminated channel indicator. (FROM MINGAY'S PRICE SERVICE)

  Alternatives to some of the solid state diodes listed may have been used.

  The height does not include the legs.

• Net weight (2.2 lb = 1 kg)
• 109 lb (109 lb 0 oz) / 49.486 kg

• Price in first year of sale
• 166.95 AUS £

• Mentioned in
• Mingay's Price Service (Feb 1962.)

• Literature/Schematics (1)
• -- Original-techn. papers. (Philips Service Data , December 1961.)

• Literature/Schematics (2)
• J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962 & 1967, Page P18.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
