23TX562A /00 /05 /07 /16 /66

23TX562A /00 /05 /07 /16 /66; Philips; Eindhoven (ID = 1514490) Television

23TX562A /00 /05 /07 /16 /66; Philips; Eindhoven (ID = 1514491) Television
23TX562A /00 /05 /07 /16 /66; Philips; Eindhoven (ID = 1514106) Television 23TX562A /00 /05 /07 /16 /66; Philips; Eindhoven (ID = 2003420) Television
23TX562A /00 /05 /07 /16 /66; Philips; Eindhoven (ID = 2003421) Television 23TX562A /00 /05 /07 /16 /66; Philips; Eindhoven (ID = 2003422) Television

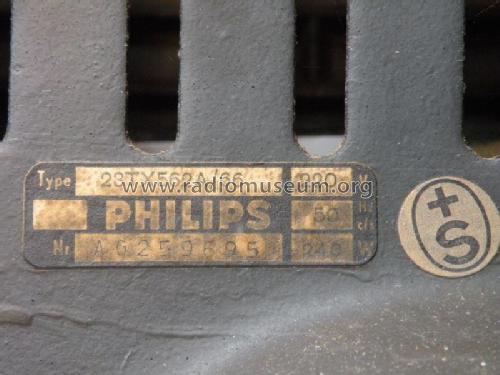

23TX562A /00 /05 /07 /16 /66; Philips; Eindhoven (ID = 2003423) Television 23TX562A /00 /05 /07 /16 /66; Philips; Eindhoven (ID = 2003425) Television
Use red slider bar for more.
23TX562A /00 /05 /07 /16 /66; Philips; Eindhoven (ID = 1514106) Television
Philips; Eindhoven: 23TX562A /00 /05 /07 /16 /66 [Television] ID = 1514106 705x677
Select picture or schematic to display from thumbnails on the right and click for download.
For model 23TX562A /00 /05 /07 /16 /66, Philips; Eindhoven (tubes international!); Miniwatt:
23TX562A multistandard tv

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1966 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 21: PCF200 PCF201 PCL86 PCL85 PC900 PCF801 PCF80 ECH84 PCF201 PCF201 PCF200 PFL200 PCF80 PCF802 PL500 PY88 DY87 ECH84 PF86 PCL85 A59-11W
Semiconductors (the count is only for transistors) 2: AF186 AF186
Main principle Superheterodyne (common); 2 AF stage(s)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 23TX562A /00 /05 /07 /16 /66 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 640 x 510 x 410 mm / 25.2 x 20.1 x 16.1 inch
Notes
  • Transformerless audio output stage.
  • 5 standard receiver:
  • Type of loudspeaker: 1 x AD3729AM.
  • VHF channels: (tuner 4822 118 00199): E2-E12, F7-F8.
  • UHF (tuner 4822 118 00309): 470-890 MHz.
  • Contains semiconductor diodes: 1 x BY100, 1 x AA119, 4 x OA91, 1 x OA47, 2 x OA90, 3 x BA100, 1 x OA81, 1 x OA85.

Basically the same TV as 23TX561A /16 /66. For the differences see the technical document uploaded to this model.

Mentioned in -- Original-techn. papers.

Model page created by a member from B. See "Data change" for further contributors.
