• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philips Electrical, Lamps, Industrial - Miniwatt; London

• Year
• 1939

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 99146

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• EE50 ECH3 ECH3 EE50 EE50 EA50 EA50 EF6 EC50 EL3 EC50 4654 EF6 EBL1 1817 or AZ50 1877 MW22-1 or MW22-5

• Main principle
• Superhet with RF-stage; ZF/IF 13200/9700 kHz; 1 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 2407 - Philips Electrical, Lamps,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 19.25 x 33.5 x 15.5 inch / 489 x 851 x 394 mm

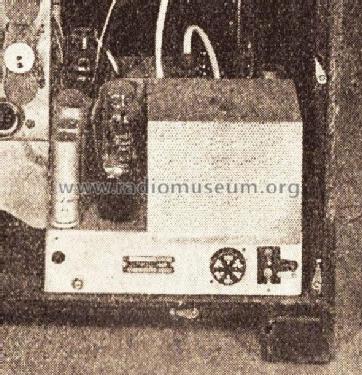

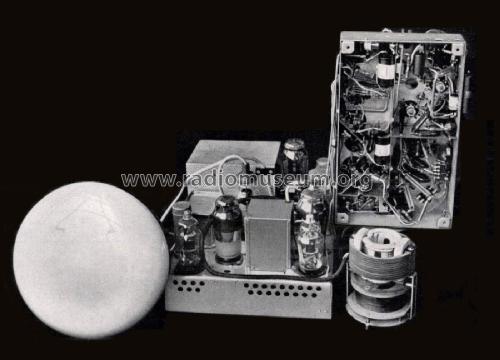

• Notes

• 9" 405 line TV for GB VHF Channel 1 only.

  Picture IF 13.2 MHz, sound IF 9.7 MHz. Video bandwith about 2 MHz.
  HT (acceleration) voltage 5 kV.

• Mentioned in
• Radio Industria n.59, n.65, n.67

• Literature/Schematics (1)
• Les Recepteurs de Television par M.Chauvierre, Paris 1948

• Author
• Model page created by a member from A. See "Data change" for further contributors.
