• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1936

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 96811

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF2 EK1 EF2 EB1 EF1 EL2 EZ2

• Number of Transistors

• Semiconductors
• 7856

• Main principle
• Superhet with RF-stage; ZF/IF 115 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

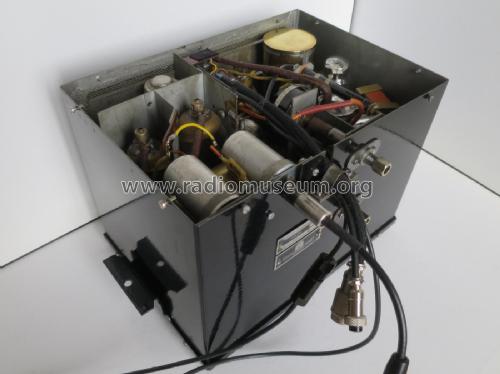

• Model: 245B - Philips; Eindhoven tubes

• Shape
• Chassis only or for «building in»

• Notes

• Abgesetztes Bedienteil mit Skala, über biegsame Wellen mit dem Grundgerät verbunden.

• Price in first year of sale
• 135.00 Hfl

• Source of data
• Technisch- Commercieel - Radio Vademecum Staleman

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by John Koster. See "Data change" for further contributors.
