24TL7524 /00Z Ch= L7

24TL7524 /00Z Ch= L7; Philips Portugal (ID = 1632474) Television 24TL7524 /00Z Ch= L7; Philips Portugal (ID = 1632475) Television

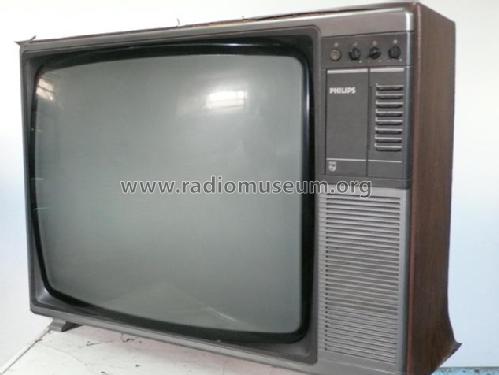

24TL7524 /00Z Ch= L7; Philips Portugal (ID = 1632477) Television 24TL7524 /00Z Ch= L7; Philips Portugal (ID = 1632478) Television
Use red slider bar for more.
24TL7524 /00Z Ch= L7; Philips Portugal (ID = 1632474) Television
Philips Portugal: 24TL7524 /00Z Ch= L7 [Television] ID = 1632474 634x476
Select picture or schematic to display from thumbnails on the right and click for download.
For model 24TL7524 /00Z Ch= L7, Philips Portugal

Country:  Portugal
Manufacturer / Brand:  Philips Portugal
Brand

FAPAE
Year: 1982 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A61-520W
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 3 W (3.3 W max.)
from Radiomuseum.org Model: 24TL7524 /00Z Ch= L7 - Philips Portugal
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 668 x 490 x 380 mm / 26.3 x 19.3 x 15 inch
Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)
Price in first year of sale 15'000.00 pte
Mentioned in - - Manufacturers Literature (Philips Model Number Survey 2003)

Model page created by Manuel Albano Neves. See "Data change" for further contributors.
