• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1930–1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 13182

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• B442 B442 B424 C443N C443N 1915

• Main principle
• TRF without regeneration

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage

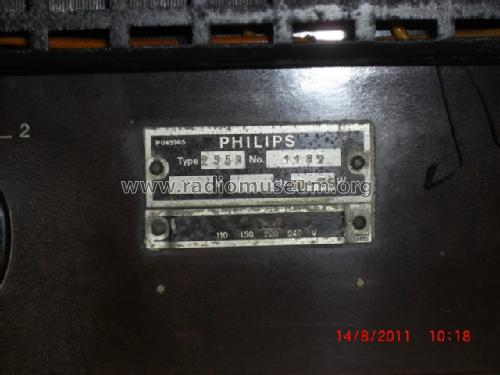

• Direct Current supply (DC) / 110-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Bakelite case

• from Radiomuseum.org

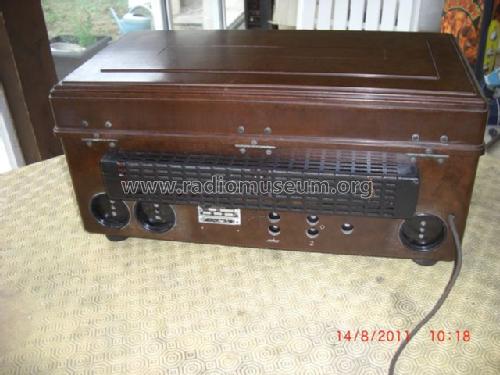

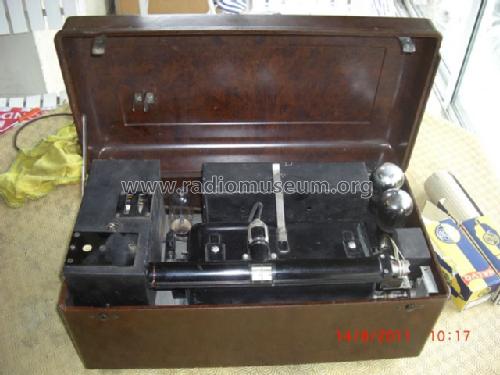

• Model: 2553 - Philips; Eindhoven tubes

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 500 x 290 x 240 mm / 19.7 x 11.4 x 9.4 inch

• Notes
• 1915 = Stromregulatorröhre.

• Net weight (2.2 lb = 1 kg)
• 22 kg / 48 lb 7.3 oz (48.458 lb)

• External source of data
• E. Erb 3-907007-36-0

• Mentioned in
• Les Radio PHILIPS de collection
