• Year
  • 1931–1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 13199

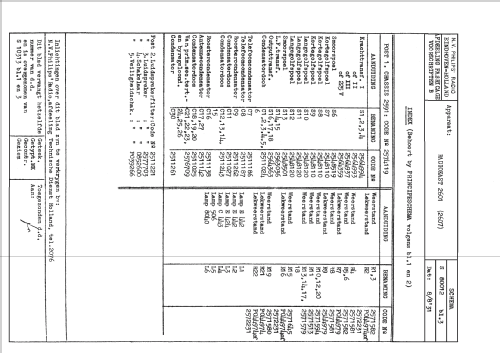

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • TRF without regeneration
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 100-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: 2607 - Philips; Eindhoven tubes
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 530 x 810 x 280 mm / 20.9 x 31.9 x 11 inch
  • Notes
  • [3331441-1208B]; Standgerät . Dial lamp: 8040 (6V/0,5A).
  • Net weight (2.2 lb = 1 kg)
  • 40 kg / 88 lb 1.7 oz (88.106 lb)
  • Price in first year of sale
  • 895.00 SFr
  • External source of data
  • E. Erb 3-907007-36-0
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
