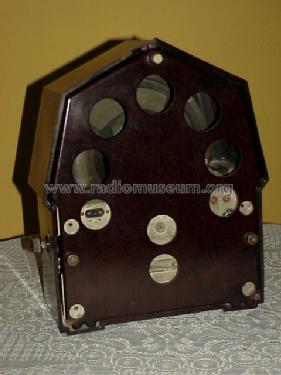

2639; Philips; Eindhoven (ID = 391338) Radio 2639; Philips; Eindhoven (ID = 391340) Radio
2639; Philips; Eindhoven (ID = 391341) Radio 2639; Philips; Eindhoven (ID = 391342) Radio
2639; Philips; Eindhoven (ID = 391343) Radio
Use red slider bar for more.
2639; Philips; Eindhoven (ID = 391336) Radio
Philips; Eindhoven: 2639 [Radio] ID = 391336 480x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2639, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: B442 B415 B543 1904
Main principle TRF without regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC)
Loudspeaker Magnetic loudspeaker (reed) of high quality (4 magnet poles). / Ø 11.8 inch = 30 cm
Power out
from Radiomuseum.org Model: 2639 - Philips; Eindhoven tubes
Material Bakelite case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 395 x 480 x 230 mm / 15.6 x 18.9 x 9.1 inch
Source of data Technisch- Commercieel - Radio Vademecum Staleman
Literature/Schematics (1) -- Collector info (Sammler)

Model page created by Eduardo Omar Fernandez. See "Data change" for further contributors.
