- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1992
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 288738

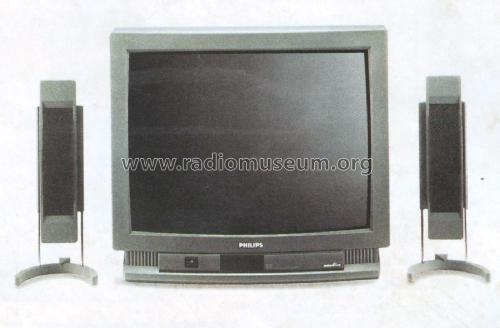

Foto Catalogo Philips
foto catalogo philips
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 80 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 28ML8976 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 645 x 582 x 475 mm / 25.4 x 22.9 x 18.7 inch
- Notes
-
TV Matchline 28" Black Line Tube, 2000 characters, OSD, menu, control INT, 100 Hz, PLL, 60 presets, multinorm, hyperband, PIP, stereo Nican and German, musical power 2x40 W, surround, audio and headphones output, TXT 1,5, Flof, memo 8 pages, 2 scarts, (comx)SVR, remote control.
- Net weight (2.2 lb = 1 kg)
- 40 kg / 88 lb 1.7 oz (88.106 lb)
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
