- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1998
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 291816

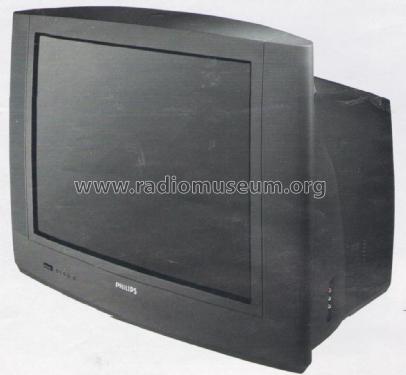

Foto Catalogo Philips
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 70 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 28PT7304 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 768 x 586 x 498 mm / 30.2 x 23.1 x 19.6 inch
- Notes
-
TV 28" Black Line-S Ultra Flat screen, 100 Hz, smart picture, easy tune: ( autostore, ACI, ATS), VHF/UHF 100 presets, teletext, 2x 35 W musical power, 2 speakers, dynamic bass enhancement, incredible sound, OSD, easy logic, easy link+new tv view link, timer off min/on/off 24h/auto off, audio in (cinch),S-video in, scarts, child lock, remote control.
- Net weight (2.2 lb = 1 kg)
- 32.5 kg / 71 lb 9.4 oz (71.586 lb)
- Mentioned in
- - - Manufacturers Literature (Catalogo Philips 98/99, page 39)
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
