- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1994
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 290142

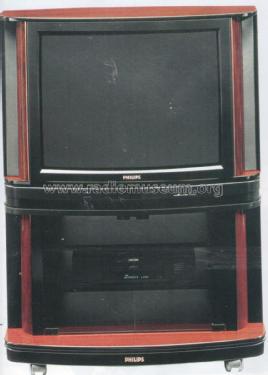

Foto Catalogo Philips
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 80 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 28PT842A - Philips; Eindhoven tubes
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 798 x 583 x 474 mm / 31.4 x 23 x 18.7 inch
- Notes
-
TV Matchline 70 cm Black Line-S 100 Hz, Automatic channel memorization, direct tuning MHz, hyperband tuning, channel S tuning, Display S/VHS, 60 presets, 16/9 commutation, Nicam digital stereo, 80 W musical power, 1 subwoofer + 3 speakers, OSD, Sleep timer, Teletext ctt with top/flof, 3 scarts, headphones and audio output, off 90 minutes, on/off 24 houres, S/video in, child lock, remote control.
- Net weight (2.2 lb = 1 kg)
- 38 kg / 83 lb 11.2 oz (83.7 lb)
- Mentioned in
- -- Collector info (Sammler)
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
