- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1998
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 291831

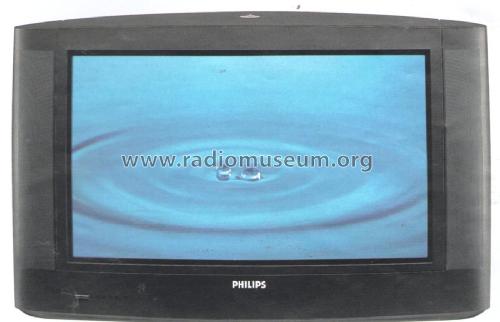

Foto Catalogo Philips
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 70 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 28PW8504 - Philips; Eindhoven tubes
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 829 x 505 x 534 mm / 32.6 x 19.9 x 21 inch
- Notes
-
TV 28" Black Line-S crystal clear lll screen, Matchline, 100Hz/100Hz digital scan natural motion, widescreen plug and auto tv, 16x9 screen, scavem/combfilter/ant-format/dnr/sharpness, dolby prologic/incredible surroud/nexTview, teletext, easy link+nexTview link, easy tune: (autostore, ACI, ATS), VHF/UHF, 100 presets, 16/9 auto and manual, movie expand 4:9&16:9 subtitle, zoom, super zoom, c/scroll, stereo nicam, 2x 35 W musical power, 2 speakers, dynamic bass enhancement, incredible sound, DSP, OSD, timer off min 180/on-off 24h/auto off, child lock, A/V in, audio out, scarts, remote control.
- Net weight (2.2 lb = 1 kg)
- 33.5 kg / 73 lb 12.6 oz (73.789 lb)
- Mentioned in
- - - Manufacturers Literature (Catalogo Philips 98/99, page 35)
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
