• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 2000–2002

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 287047

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• W66ESF002X44

• Main principle
• PLL, Phase-locked loop

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 20 W (40 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

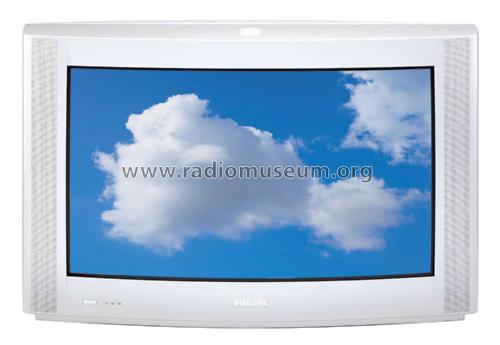

• Model: 28PW8506 /05 /12 /12R - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 762 x 489 x 506 mm / 30 x 19.3 x 19.9 inch

• Notes

• 28" Super Flat Black Line S widescreen CRT. 100 Hz. Dolby Virtual.

  Chassis: EM2 (as per declaration of conformity), EM2E (according to Philips Model Number Survey), or EMG (flyer dated 01/2002).

  Different versions:

  • /05 - unknown differences
  • /12 - cabinet color Anthracite
  • /12R - cabinet color Silver Shadow



• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Mentioned in
• - - Manufacturers Literature

• Literature/Schematics (1)
• -- Original prospect or advert
