• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142881

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• EF5 AH1 EF6 EF5 EM1 EF5 EBC3 AL2 AL2 EZ3

• Main principle
• Superhet with RF-stage; ZF/IF 475 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic.

• Material
• Wooden case

• from Radiomuseum.org
• Model: 343A - Philips; Eindhoven tubes

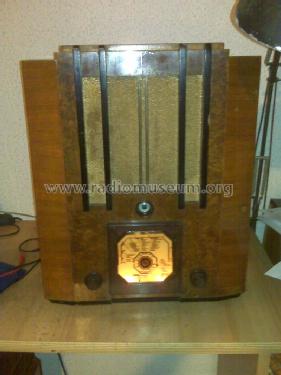

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Notes
• Wave Bands:SW2:13,6 - 46 m, SW1:45-162 m, MW:160-585 m

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Bruno Gandolfo-Canepa. See "Data change" for further contributors.
