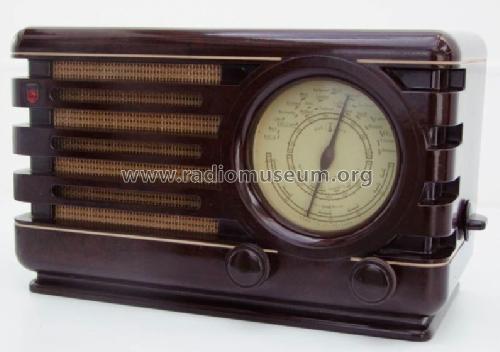

371U; Philips Electrical, (ID = 827029) Radio
Philips Electrical,: 371U [Radio] ID = 827029 795x560
Select picture or schematic to display from thumbnails on the right and click for download.
For model 371U, Philips Electrical, Lamps, Industrial - Miniwatt; London:
Ebay 250701900475 by bown007

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CCH35 EF39 EBC33 CL33 CY31
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 371U - Philips Electrical, Lamps,
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 16.75 x 9.5 x 8 inch / 425 x 241 x 203 mm
Notes Similar in appearance to the Philips 371A AC mains model.
Source of data - - Manufacturers Literature

Model page created by Howard Craven. See "Data change" for further contributors.
