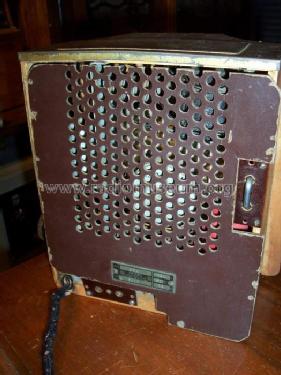

Luistervink 37A; Philips; Eindhoven (ID = 233239) Radio Luistervink 37A; Philips; Eindhoven (ID = 102694) Radio
Luistervink 37A; Philips; Eindhoven (ID = 102696) Radio Luistervink 37A; Philips; Eindhoven (ID = 102702) Radio

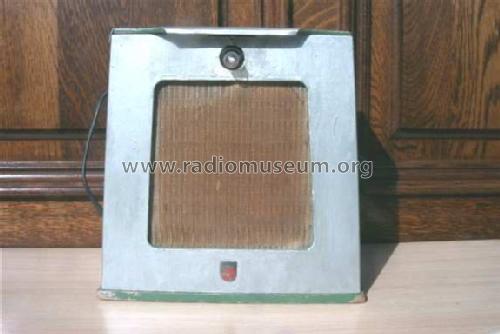

Luistervink 37A; Philips; Eindhoven (ID = 233238) Radio Luistervink 37A; Philips; Eindhoven (ID = 233240) Radio
Luistervink 37A; Philips; Eindhoven (ID = 233241) Radio Luistervink 37A; Philips; Eindhoven (ID = 233242) Radio
Use red slider bar for more.
Luistervink 37A; Philips; Eindhoven (ID = 382514) Radio
Philips; Eindhoven: Luistervink 37A [Radio] ID = 382514 621x604
Select picture or schematic to display from thumbnails on the right and click for download.
For model Luistervink 37A, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1944/1945 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1: ECF1 or ECH21
Main principle TRF with regeneration; 1 AF stage(s); Reflex
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 125, 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: Luistervink 37A - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 210 x 210 x 80 mm / 8.3 x 8.3 x 3.1 inch
Notes First Dutch Philips radio after Liberation of the southern part of The Netherlands in 1944, fixed tuned to Radio "Herrijzend Nederland" at 415 meter
Net weight (2.2 lb = 1 kg) 1.6 kg / 3 lb 8.4 oz (3.524 lb)
Price in first year of sale 75.00 Hfl
Source of data -- Original-techn. papers.
Mentioned in Technisch- Commercieel - Radio Vademecum Staleman

Model page created by Iven Müller. See "Data change" for further contributors.
