431AS

431AS; Philips Australia (ID = 2525473) Radio 431AS; Philips Australia (ID = 2525474) Radio
431AS; Philips Australia (ID = 2525475) Radio 431AS; Philips Australia (ID = 2525476) Radio
431AS; Philips Australia (ID = 2593383) Radio
Use red slider bar for more.
431AS; Philips Australia (ID = 2525473) Radio
Philips Australia: 431AS [Radio] ID = 2525473 825x587
Select picture or schematic to display from thumbnails on the right and click for download.
For model 431AS, Philips Australia:
Picture from auction site 'Marktplaats' (courtesy seller Boma).

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6U7G 6J8G 6U7G 6B6G 6V6G 5Y3G
Main principle Superhet with RF-stage; Export model
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 431AS - Philips Australia
Material Bakelite case
Shape Tablemodel, low profile (big size).
Notes

Philips model 431AS was manufactured in Australia shortly after the beginning of WW 2 and had the Dutch East Indies as destination.
Although Philips in the Netherlands continued manufacturing radios during WW 2, it was only allowed to export to German friendly countries (the former Dutch colonies did not have this status). So Philips outsourced production of radios with destination Dutch East Indies to countries like the USA and Australia, until the Japanese invasion in 1942.

See also USA models 513AN, 518AN and 614VN.

Model 431AS seems to be identical to the later Australian Philips model 431D.

The tube set is not certain.

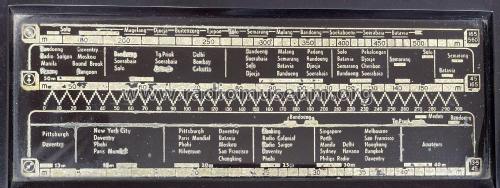

Wave range: 13.5-560 m.

Price in first year of sale 215.00 Hfl
Mentioned in -- Original prospect or advert

Model page created by Gidi Verheijen. See "Data change" for further contributors.
