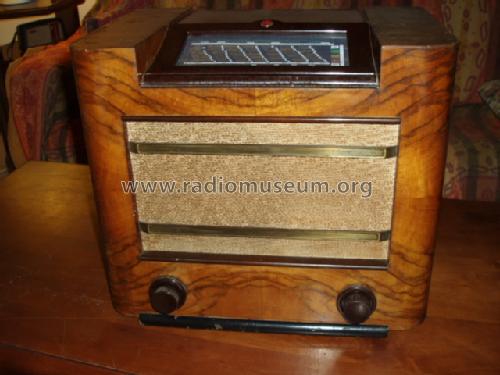

Prélude 456A -20; Philips France; (ID = 1446801) Radio Prélude 456A -20; Philips France; (ID = 1447503) Radio
Prélude 456A -20; Philips France; (ID = 1446785) Radio Prélude 456A -20; Philips France; (ID = 1446800) Radio
Prélude 456A -20; Philips France; (ID = 1447472) Radio Prélude 456A -20; Philips France; (ID = 1447479) Radio
Use red slider bar for more.
Prélude 456A -20; Philips France; (ID = 1519628) Radio
Philips France;: Prélude 456A -20 [Radio] ID = 1519628 933x894
Select picture or schematic to display from thumbnails on the right and click for download.
For model Prélude 456A -20, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1937 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EK2 EF5 EB4 EL3 EZ3
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Prélude 456A -20 - Philips France; Paris
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

3 wave bands: SW 16.5 - 51 m, MW 198 - 585 m, LW 725 - 2000 m.

See also model 456A -29 which shares the documentation with version -20.

Price in first year of sale 115.00 FL
Source of data Technisch- Commercieel - Radio Vademecum Staleman
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
