Satellite Nine 4 Band Transistor Radio 22RL420

Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1995710) Radio

Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1995711) Radio

Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1995712) Radio

Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1995713) Radio

Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1995714) Radio

Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1995715) Radio

Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1995716) Radio

Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1995717) Radio

Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1995718) Radio

Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1995719) Radio
Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1767123) Radio Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1767124) Radio
Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1767125) Radio Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1767127) Radio
Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1767128) Radio Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1768790) Radio
Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1768791) Radio Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1768792) Radio
Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1768793) Radio Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1768794) Radio
Use red slider bar for more.
Satellite Nine 4 Band Transistor Radio 22RL420; Philips Australia (ID = 1767123) Radio

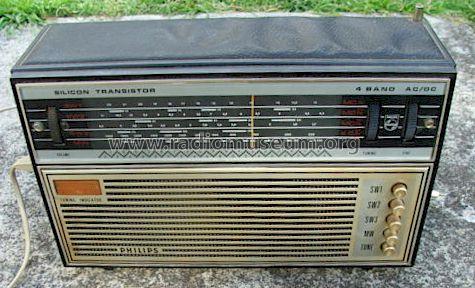

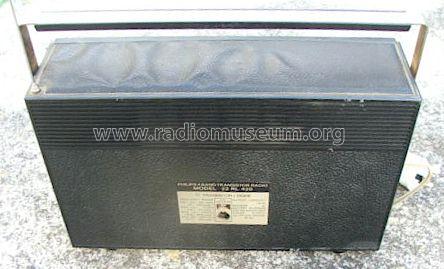

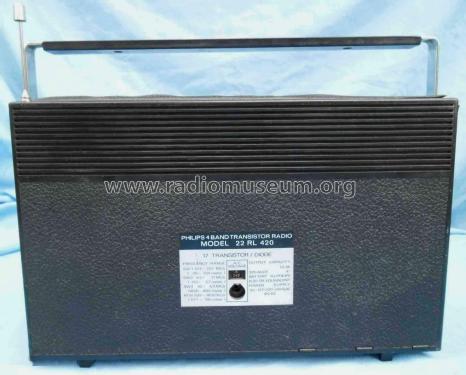

Philips Australia: Satellite Nine 4 Band Transistor Radio 22RL420 [Radio] ID = 1767123 1033x777
Select picture or schematic to display from thumbnails on the right and click for download.
For model Satellite Nine 4 Band Transistor Radio 22RL420, Philips Australia:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF126 AF126 AF126 BC109 BC109 AC187 AC188 AC127 AC128 AA119 BA114 AA119 BA114 BA114 BA148 BA148 BA148 BZY88
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 110; 127; 220; 240/ 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Satellite Nine 4 Band Transistor Radio 22RL420 - Philips Australia
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 302 x 195 x 98 mm / 11.9 x 7.7 x 3.9 inch
Notes

Export model marketed by Philips Australia.

Philips Silicon Transistor 4 Band AC/DC Transistor Radio 22RL420, 17 Transistor/Diode;
SW1: 10.7 - 22.1 MHz,
SW2: 4.2 - 11 MHz,
SW3: 1.6 - 4.3 MHz,
MW: 525 - 1650 kHz, tone button, fine tuning.

Black/Chrome finish.

Price in first year of sale 94.95 AUS $
Source of data -- Original-techn. papers.

Model page created by a member from A. See "Data change" for further contributors.
