500A

500A; Philips; Eindhoven (ID = 2261035) Radio

500A; Philips; Eindhoven (ID = 2261036) Radio

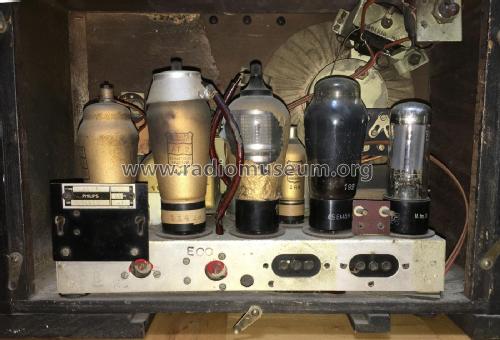

500A; Philips; Eindhoven (ID = 221148) Radio 500A; Philips; Eindhoven (ID = 2261022) Radio
500A; Philips; Eindhoven (ID = 2261023) Radio 500A; Philips; Eindhoven (ID = 2261024) Radio
Use red slider bar for more.
500A; Philips; Eindhoven (ID = 221148) Radio
Philips; Eindhoven: 500A [Radio] ID = 221148 533x444
Select picture or schematic to display from thumbnails on the right and click for download.
For model 500A, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AK1 AF2 AB1 E446 E443H 506
Main principle Superheterodyne (common); ZF/IF 115 kHz; Export model
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 103 - 253 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 500A - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 410 x 290 x 200 mm / 16.1 x 11.4 x 7.9 inch
Notes

Exportmodell für Norwegen.

Net weight (2.2 lb = 1 kg) 8.6 kg / 18 lb 15.1 oz (18.943 lb)
Mentioned in Philips-Apparaten-Typenliste (1955)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Ernst Rykkje. See "Data change" for further contributors.
